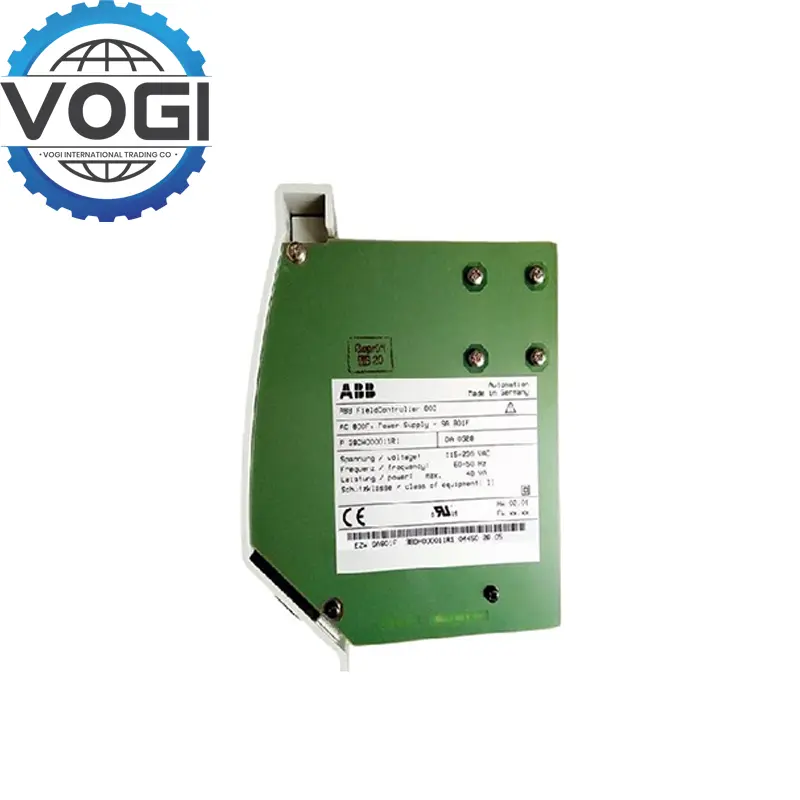

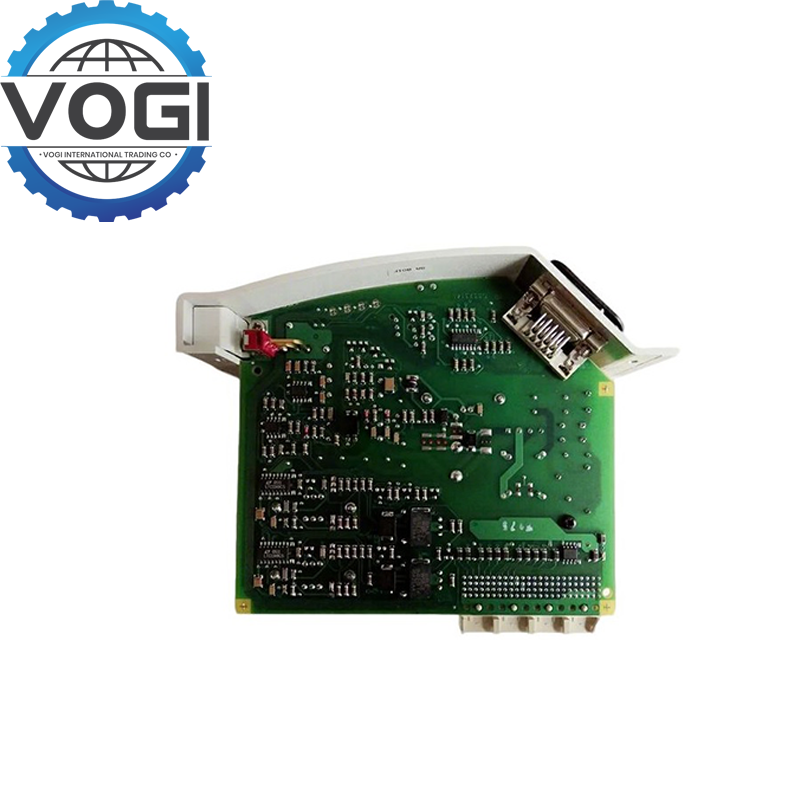

ABB SA801F POWER SUPPLY

Brand ABB
Country Of Origin Sweden
Module Number SA801F
Ordering Number 3BDH000011R1
Dimension 18.5*12.5*5.5cm
Weight 0.5kg
HS Code 85389091
Condition Brand New
Certificate COO TEST REPORT WARRANTY LETTER
Warranty 12 Months
Inventory Qty 10
Payment Term T/T

Send inquiry

Technical ParametersVOGI

Part Number: SA801F (3BDH000011R1)

Function: AC800F Controller Power Supply Module

Input Voltage: 115–230 VAC (self-adjusting); permissible range 90–260 VAC; 47–63 Hz

Input Current: 275 mA at 230 VAC; 541 mA at 115 VAC

Rated Input Power: 63 VA

Output Voltages: 3.3 V DC (±3%); 5.0 V DC (±3%)

Output Current: Up to 5 A per rail (3.3 V and 5 V)

Total Output Power: 26.5 W max

Backup Energy: ≥ 20 ms hold-up on power failure

Protection: Short-circuit proof; current-limited; power-fail prediction

LED Indicators: Power (green); Failure/self-test (orange)

Operating Temperature: -20 °C to +60 °C

Protection Class: IP20

Key FeaturesVOGI

Wide, Auto-Sensing AC Input
Easily adapts to 115 V or 230 V mains with built-in EMC filtering.

Dual High-Current Outputs
Provides two isolated DC rails (3.3 V and 5 V) each capable of 5 A—suitable for powering CPUs, I/O cards, and auxiliary electronics.

Power-Fail Hold-Up & Prediction
Onboard energy storage maintains outputs for at least 20 ms after mains loss, and signals upstream controllers to initiate safe-shutdown sequences.

Robust Protection & Self-Recovery
Integrated over-current and short-circuit protection auto-resets after fault clearance; power-fail LED gives rapid fault diagnosis.

Modular, Hot-Swappable Design
Slides into the AC800F rack and can be replaced under power, minimizing process downtime.

Freight Estimation(Part Of The Area)VOGI

Destination	Freight
Middle East	$35
Southeast Asia	$15
South Asia	$45
South Africa	$37
Europe and USA	$24
Russia	$42

APPLICATIONVOGI

North American lithium battery production workshop

Tesla Nevada Super Factory deploys SA801F monitoring Emergency stop button of electrode coating machine, resistant to workshop dust environment, failure rate <0.001%.

Nordic paper mill

Swedish SCA Group factory uses SA801F to protect High-speed paper cutter, through SIL 3 certified logic to prevent accidental start of the cutter, avoiding 10+ safety accidents every year.

Middle East petrochemical tank area

Saudi Aramco Ras Tanura tank area uses SA801F to manage Combustible gas leakage emergency shutdown system, which meets ATEX Zone 2 explosion-proof requirements.
