Allen-Bradley

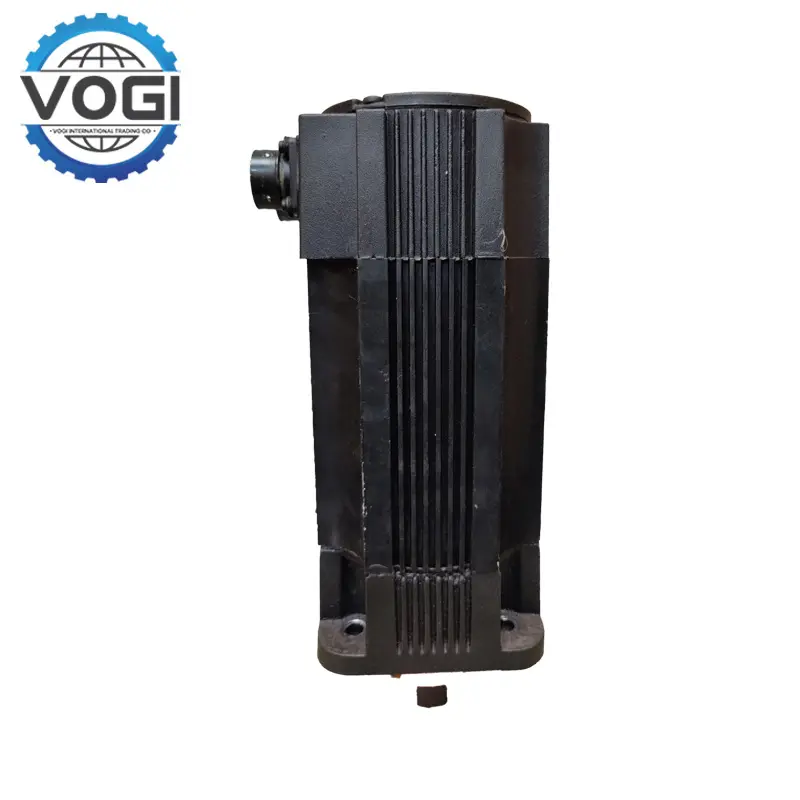

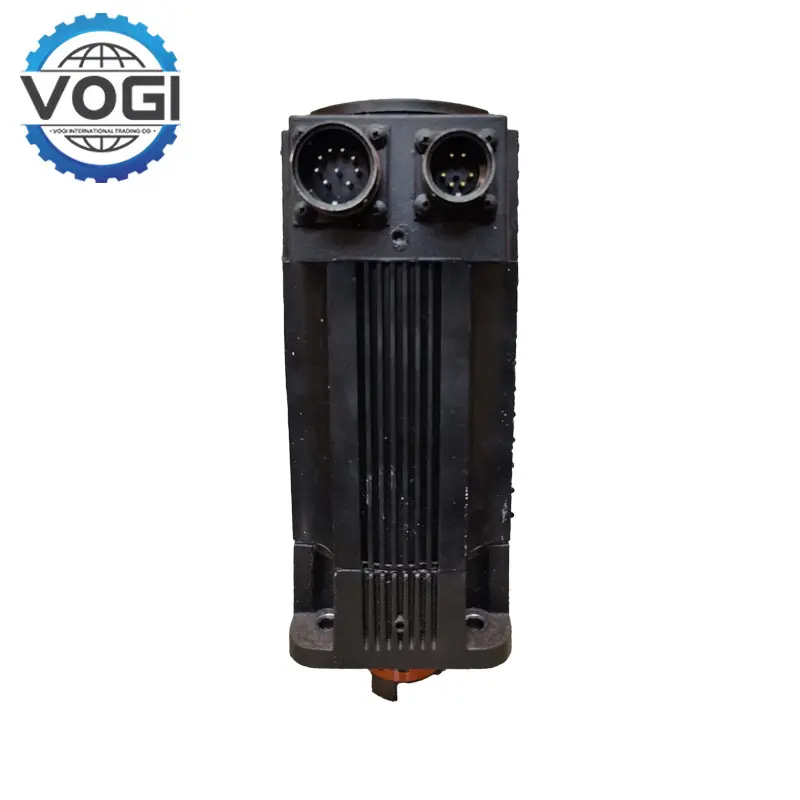

Allen-Bradley 1326AB-B410G-21 SERVO MOTOR
Key SpecificationsVOGI
Rated Power: 1.0 kW
Rated Voltage: 460/380V AC
Rated Speed: 5000/4000 RPM
Continuous Torque: 2.7 Nm
Peak Stall Torque: 6.6 Nm
Feedback Type: Rugged resolver (2048 PPR)
Frame Diameter: 108 mm
Mounting: IEC metric flange with keyway
Protection Rating: IP65
Thermal Protection: Normally closed thermal switch (115V AC / 24V DC at 1A)
Operating Temperature: 0°C to 40°C (up to 50°C without derating)
Key FeaturesVOGI
High Performance: Delivers 2.7 Nm continuous and 6.6 Nm peak stall torque for demanding applications.
Rugged Feedback: Utilizes a 2048 PPR resolver for accurate position feedback in harsh environments.
Compact Design: 108 mm frame diameter suitable for space-constrained installations.
Durable Construction: IP65 rated for protection against dust and water ingress.
Thermal Protection: Equipped with a thermal switch to prevent overheating.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$105 |
|
Southeast Asia |
$97 |
|
South Asia |
$140 |
|
South Africa |
$113 |
|
Europe and USA |
$63 |
|
Russia |
$129 |
APPLICATIONVOGI
CNC Machines: Allen-Bradley 1326AB-B410G-21 Ensures precise motion control for high-accuracy machining.
Robotic Systems: Allen-Bradley 1326AB-B410G-21 Provides reliable and repeatable movements in robotic arms.
Packaging Equipment: Allen-Bradley 1326AB-B410G-21 Delivers consistent performance in high-speed packaging lines.
Material Handling Systems: Facilitates efficient and safe movement of materials.
Conveyor Systems: Offers smooth and controlled conveyor belt operations.
