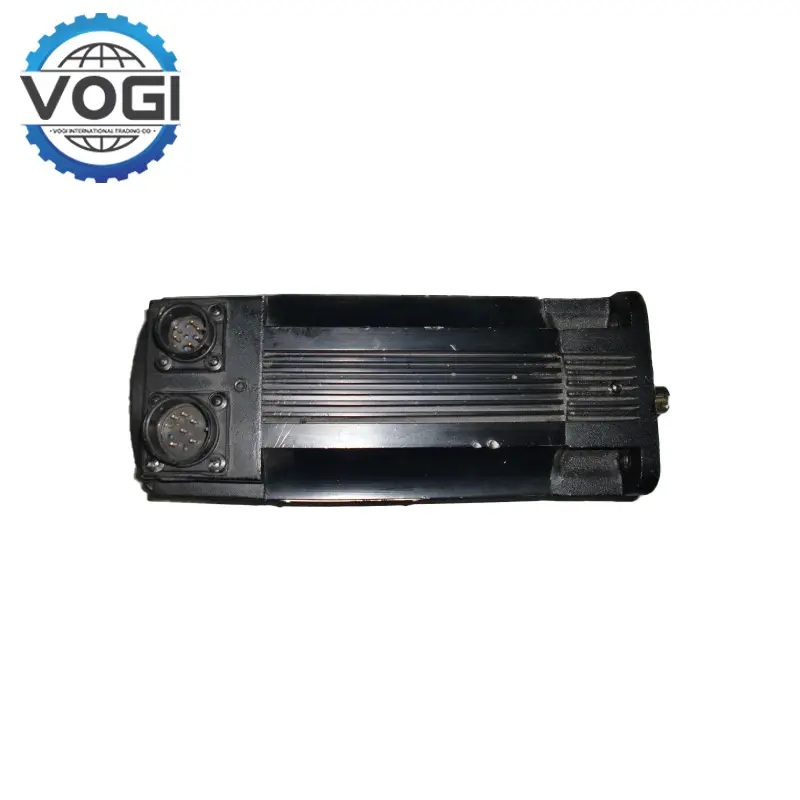

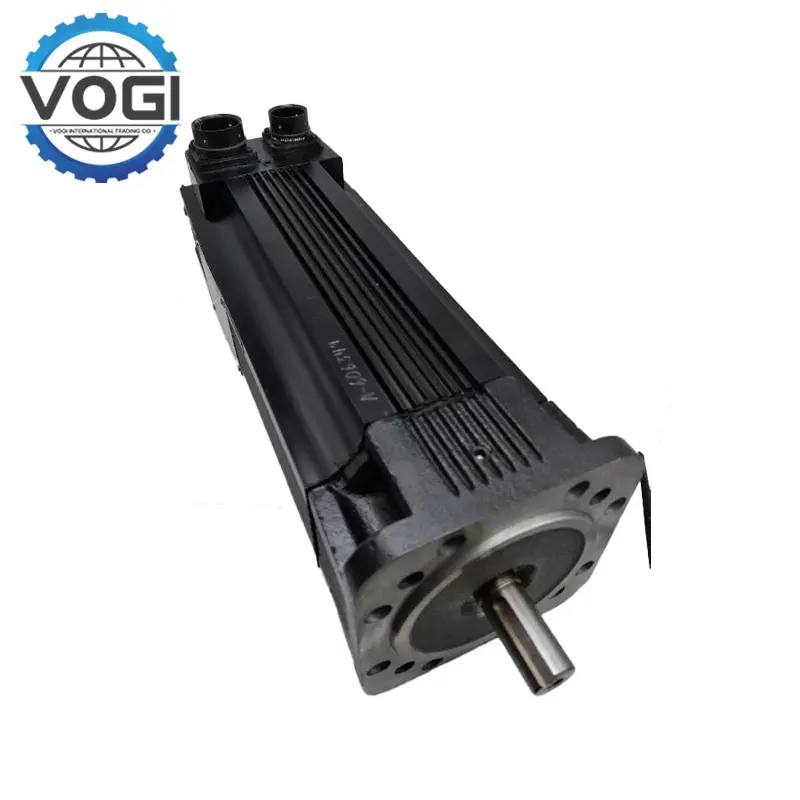

Allen-Bradley 1326AB-B420E-21 AC SERVO MOTOR

Rated power: 1.1 kW

Rated voltage: 380–460V AC

Rated speed: 3000 RPM

Continuous output torque: 5.0 Nm

Peak torque: 14.9 Nm

Feedback type: Brushless resolver

Insulation rating: UL listed, file number E57948

Protection rating: IP65 (after shaft seal kit installed)

Mounting method: IEC 72-1 metric flange mount with keyway shaft

Thermal protection: Built-in normally closed thermal switch, rated at 115V AC / 24V DC, 1A

Housing material: Extruded aluminum housing, enhanced heat dissipation.

High-performance output: Allen-Bradley 1326AB-B420E-21 Provides 5 Nm continuous torque and 14.9 Nm peak torque for high-load applications.

Compact design: Medium inertia design for space-constrained installation environments.

High-precision feedback: Resolver feedback provides accurate position and velocity control for demanding motion control systems.

Durability: IP65 protection rating and rugged aluminum housing for harsh industrial environments.

Thermal protection: Allen-Bradley 1326AB-B420E-21 Built-in thermal switch prevents overheating and ensures safe motor operation.

CNC machine tools: Achieve high-precision processing and positioning control.

Robotic systems: Allen-Bradley 1326AB-B420E-21 Provide precise motion control to meet complex operation requirements.

Packaging machinery: Allen-Bradley 1326AB-B420E-21 Ensure high-speed and stable packaging processes.

Automated assembly lines: Allen-Bradley 1326AB-B420E-21 Improve production efficiency and meet the needs of continuous operation.

Material handling systems: Achieve precise material positioning and handling control.
