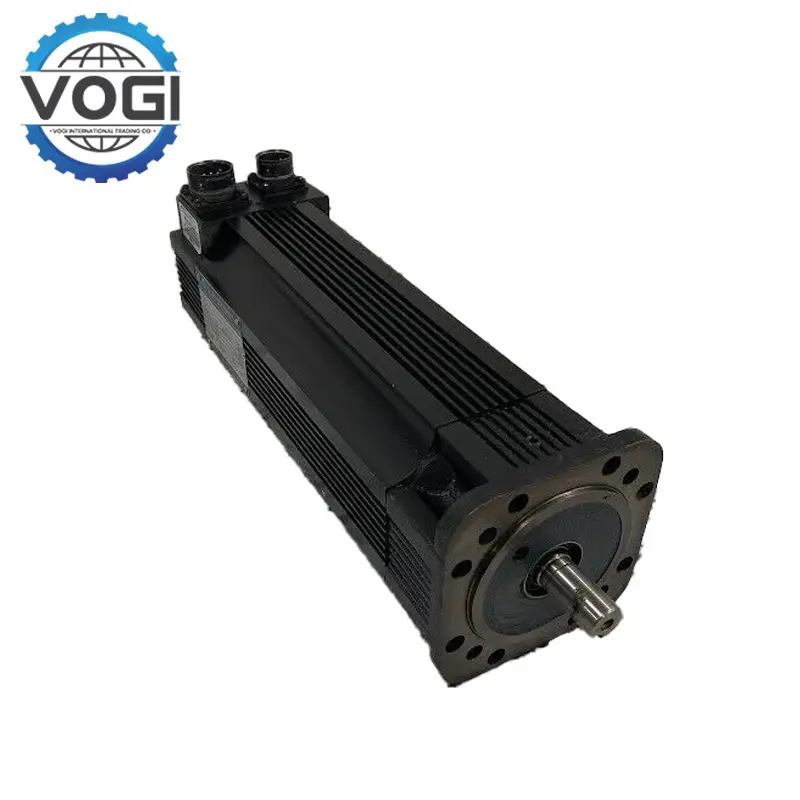

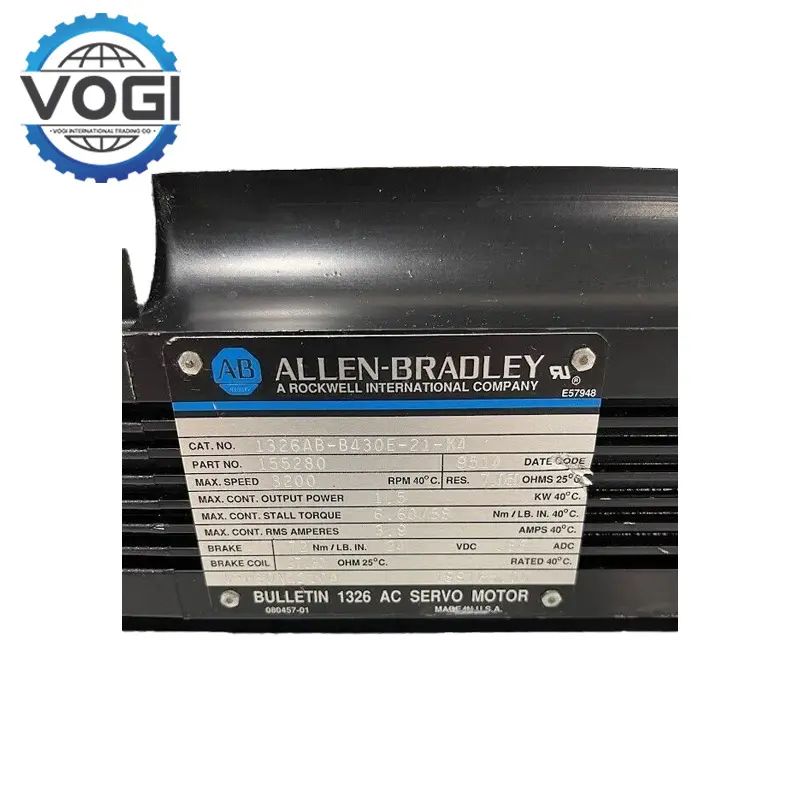

Allen-Bradley 1326AB-B430E-21-K4 SERVO MOTOR

Rated Power: 1.4 kW

Rated Voltage: 460/380V AC

Rated Speed: 3000/2500 RPM

Continuous Torque: 6.6 Nm

Peak Stall Torque: 19.7 Nm

Feedback Type: Rugged resolver (2048 PPR)

Holding Brake: 8.1 Nm @ 24V DC

Frame Diameter: 108 mm

Mounting: IEC metric flange with keyway

Protection Rating: IP65

Thermal Protection: Normally closed thermal switch (115V AC / 24V DC at 1A)

Operating Temperature: 0°C to 40°C (up to 50°C without derating)

High Torque Output:Allen-Bradley 1326AB-B430E-21-K4 Provides 6.6 Nm continuous and 19.7 Nm peak stall torque for demanding applications.

Integrated Holding Brake: Features an 8.1 Nm holding brake at 24V DC for secure load holding.

Rugged Resolver Feedback: Utilizes a 2048 PPR resolver for accurate position feedback in harsh environments.

Compact Design: 108 mm frame diameter suitable for space-constrained installations.

Durable Construction: IP65 rated for protection against dust and water ingress.

Thermal Protection:Allen-Bradley 1326AB-B430E-21-K4 Equipped with a thermal switch to prevent overheating.

CNC Machines: Ensures precise motion control for high-accuracy machining.

Robotic Systems: Allen-Bradley 1326AB-B430E-21-K4 Provides reliable and repeatable movements in robotic arms.

Packaging Equipment: Allen-Bradley 1326AB-B430E-21-K4 Delivers consistent performance in high-speed packaging lines.

Material Handling Systems: Facilitates efficient and safe movement of materials.

Conveyor Systems: Offers smooth and controlled conveyor belt operations.
