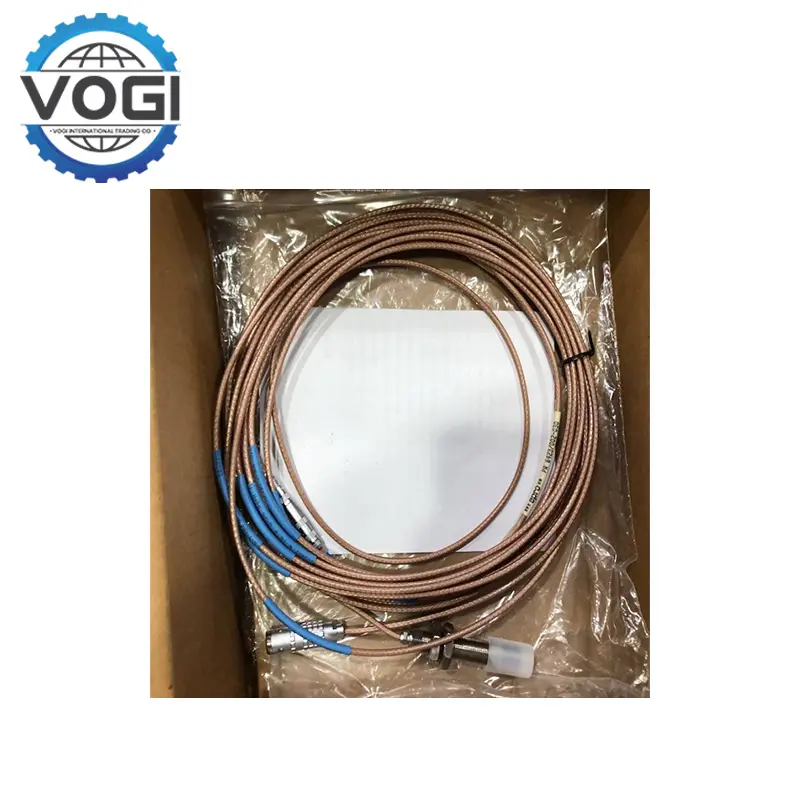

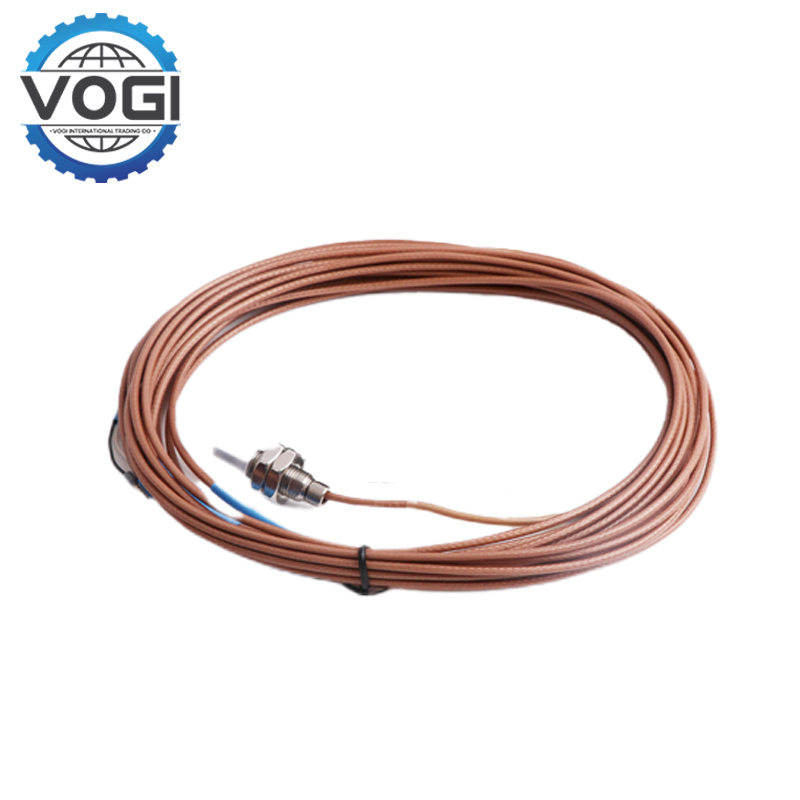

Epro PR6423/001-010 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread length: 35mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
Textile Machinery: In Turkish high-speed looms, the PR6423/001-010 detects roller vibrations (0–5mm range) with ±0.5% linearity, slashing fabric defect rates by 34% under 24/7 operation.
Water Treatment: Monitors pump shaft displacement in Saudi desalination plants (IP68 saltwater resistance), extending service life by 3 years vs. traditional sensors.
Robotic Welding: Calibrated for aluminum alloy arms in Japanese automotive lines, the PR6423/001-010 ensures 0.02mm repeatability for ISO 9283-compliant arc welding.
Additive Manufacturing: Tracks 3D printer nozzle positioning in German aerospace labs , achieving 99.7% dimensional accuracy for titanium components.
Agri-Tech: Survives grain dust in Australian harvesters, monitoring auger alignment with 5-year MTBF (Mean Time Between Failures).
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Medical Device Assembly: In South Korean MRI manufacturing, the PR6423/001-010 ensures ±0.3µm alignment of superconducting coils, critical for ISO 13485 compliance. Hospitals in Germany report 98% component reliability since 2023 upgrades.
Plastic Injection Molding: Monitors mold clamping force in Thai automotive part factories (0–10kN range), reducing flash defects by 41% under 180°C polymer flows.
Glass Manufacturing: Tracks furnace conveyor roller displacement in Egyptian float glass lines (800°C ambient survivability), achieving 0.05mm positioning repeatability.
We also supply other models of this products: PR6423/00R-010, PR6423/ 009-030, PR6423/007-010. They are the same in specifications, features and application range. The difference is the length of the thread and cable length, refer to the table for details.
Module Number |
Thread Length |
Cable length |
PR6423/001-010 |
35mm |
5m |
PR6423/00R-010 |
Reverse thread |
5m |
PR6423/007-010 |
95mm |
5m |
PR6423/009-030 |
115mm |
8m |
