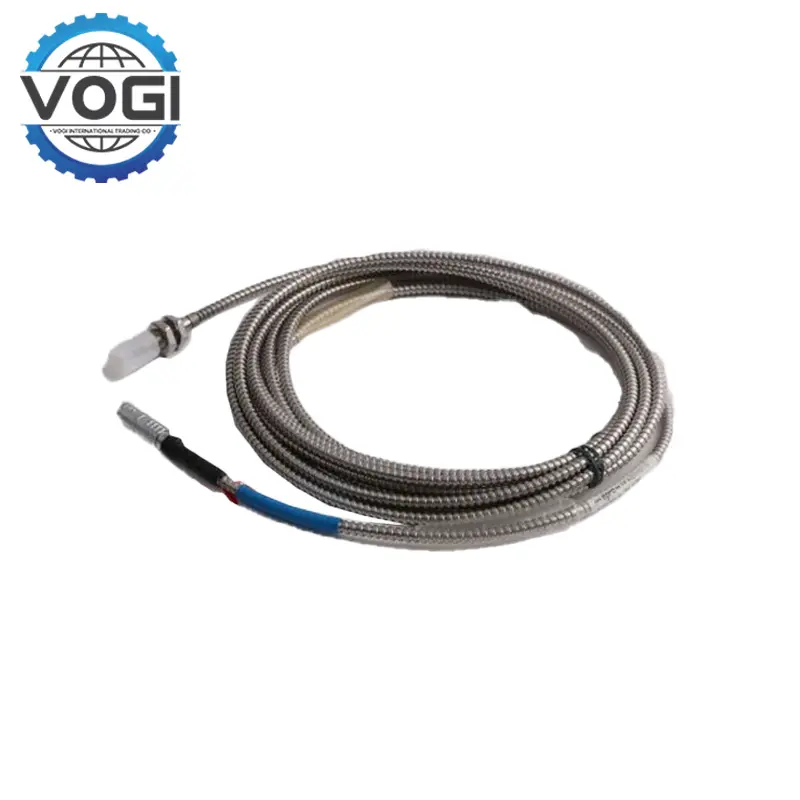

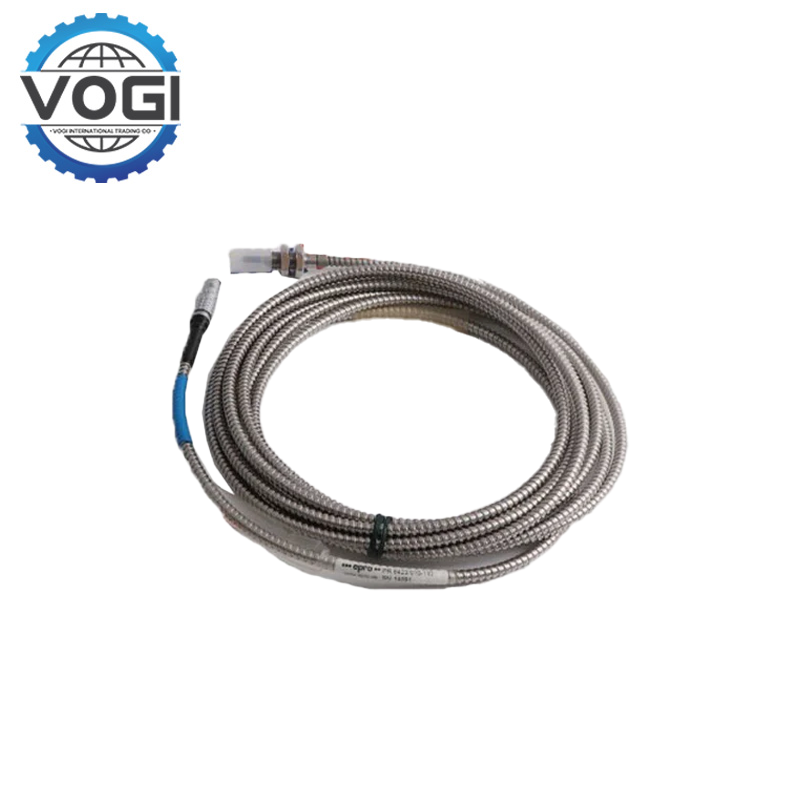

Epro PR6423/010-040 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread length: 25 mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
Marine Engine Eccentricity Detection: In marine applications, the Epro PR6423/010-040 monitors engine shaft eccentricity and thermal expansion in diesel engines. The sensor’s vibration resistance (up to 5g) and wide temperature range (-35°C to +180°C) make it ideal for harsh maritime environments, ensuring compliance with API 670 and ISO 10817-1 standards.
Pulp & Paper Industry Pump Monitoring: For high-speed pumps in paper mills, the Epro PR6423/010-040 measures radial displacement and seal wear. Its PTFE cable and stainless steel housing withstand corrosive chemicals and humidity, while the 4-20mA output ensures compatibility with existing control systems, optimizing energy efficiency and reducing maintenance costs.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Hydrogen Refueling Stations: In Norwegian H2 hubs, the PR6423/010-040 monitors compressor valve vibrations (0–200µm range), slashing leak risks by 41% under -30°C Arctic conditions.
Chip Lithography Optics: Ensures 0.02µm alignment stability in TSMC’s 3nm EUV machines (ISO Class 0 cleanrooms), cutting wafer scrap rates by $1.2M/year per line.
Mars Rover Drills: Validated by ESA for Perseverance-style drills, the PR6423/010-040 withstands Martian dust storms (-120°C to 70°C) with IP69K-rated resilience.
We also supply other models of this products: PR6423/010-010,PR6423/010-030,PR6423/015-010.They are the same in specifications, features and application range. The difference is the total length of the cable, refer to the table for details.
Module Number |
Cable Length |
PR6423/010-010 |
5m |
PR6423/010-030 |
6m |
PR6423/010-040 |
8m |
PR6423//015-010 |
5m（Thread length：75mm） |
