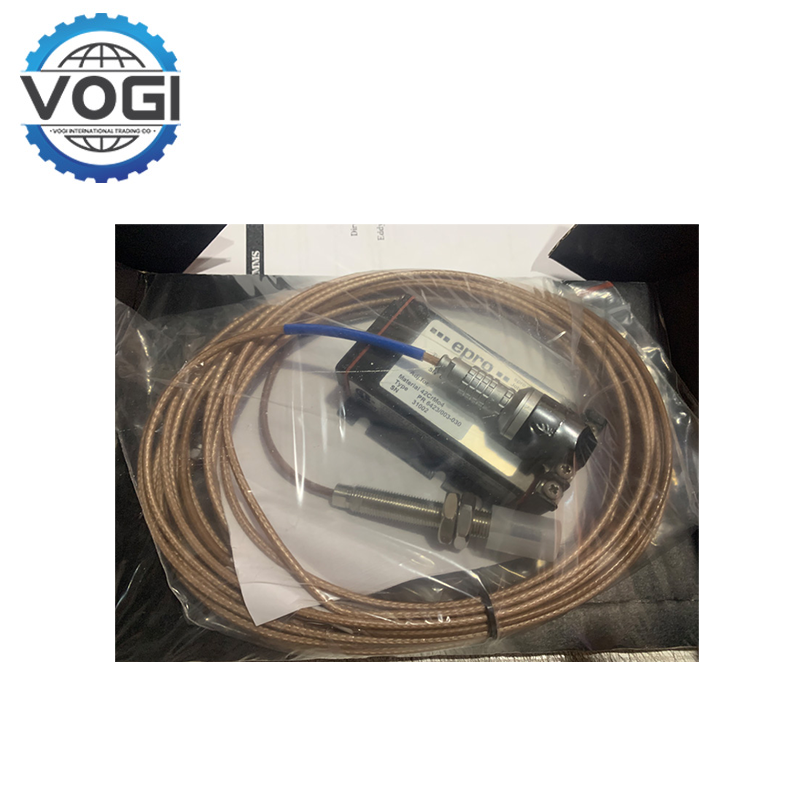

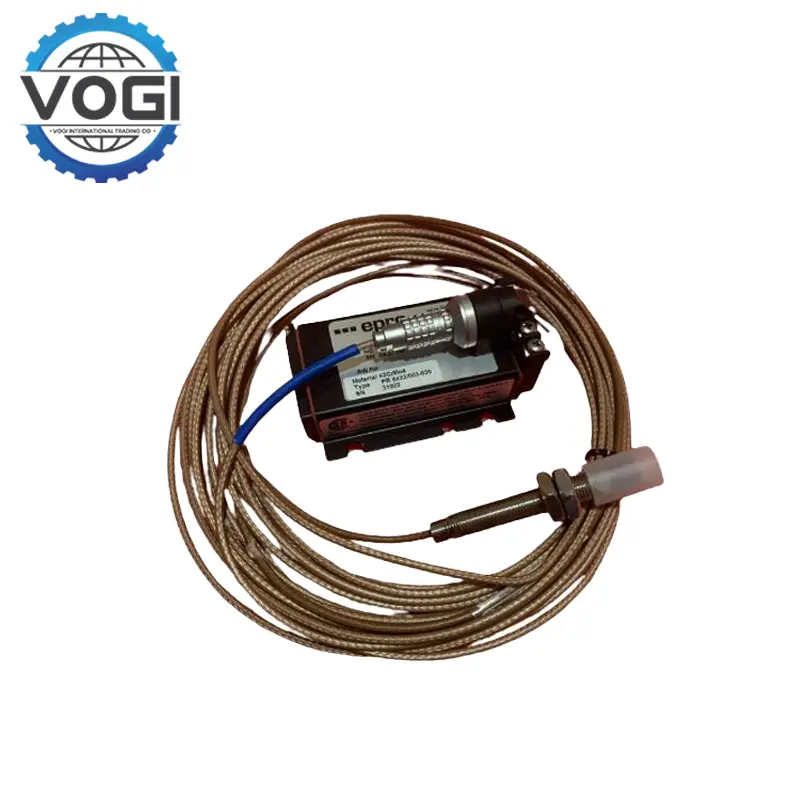

Epro PR6423/10R-111 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread length: Reverse thread
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
Dual-Channel Vibration Monitoring: The Epro PR6423/10R-111 enables simultaneous measurement of radial and axial vibrations with ±1mm dynamic range and 8V/mm sensitivity. Its dual-channel design supports advanced analysis of equipment health, such as detecting unbalance or misalignment in turbines and compressors.
Seamless Integration with Control Systems: Engineered for compatibility with DCS and PLC platforms (e.g., MMS 3000/6000, ABB Bailey), the Epro PR6423/10R-111 features modular terminals for quick wiring. Pre-calibrated settings reduce configuration time, ensuring plug-and-play functionality in power plants and oil refineries.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Wind Turbine Health Monitoring: The Epro PR6423/10R-111 detects subtle imbalances in wind turbine gearboxes, enabling predictive maintenance to avoid costly downtime. Its wide frequency range captures early signs of bearing wear or misalignment.
Pulp & Paper Manufacturing: The Epro PR6423/10R-111 ensures smooth operation of high-speed rollers and dryers. By monitoring vibration spikes linked to mechanical fatigue, it reduces downtime in humid, high-temperature environments typical of paper production lines.
Chemical Processing Pumps: Corrosion-resistant and immune to aggressive chemicals, the Epro PR6423/10R-111 safeguards pump integrity in refineries. Early detection of cavitation or seal leaks minimizes safety risks while maintaining consistent flow rates.
We also supply other models of this products: PR6423/10R-131.They are the same in specifications, features and application range. The difference is the total length of the cable, refer to the table for details.
Module Number |
Cable Length |
PR6423/10R-111 |
5m |
PR6423/10R-131 |
8m |
