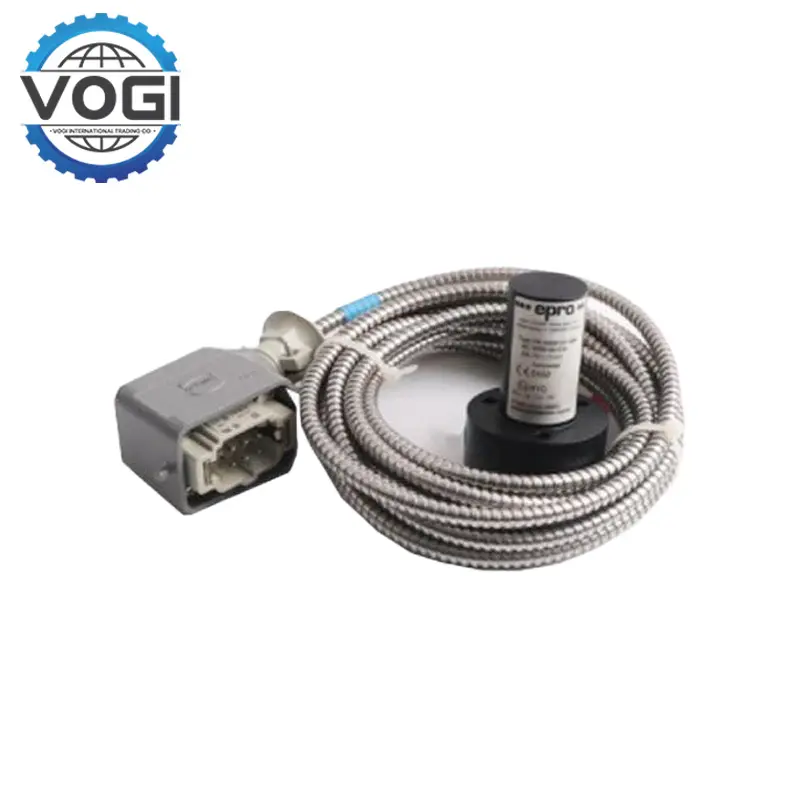

Epro PR9268/017-100 Electrodynamic Velocity Sensor
Key SpecificationsVOGI
Sensitivity: 28.5 mV/mm/s (723.9 mV/in/s).
Frequency Range: 4 to 1000Hz.
Natural Frequency: 4.5Hz ± 0.75Hz at 20°C (68°F).
Transverse Sensitivity: 0.13 (PR9268/20x-x00) at 10Hz 0.27 (PR9268/30x-x00) at 110Hz.
Vibration Amplitude (Mechanical Limit): 3000µm (4000µm) peak-peak.
Amplitude Linearity: < 2%.
Maximum Acceleration: 10g (98.1 m/s2) peak-peak continuous; 20g (196.2 m/s2) peak-peak intermittent.
Maximum Transverse Acceleration: 2g (19.62 m/s2).
Resistance: 1875Ω ± 10%.
Inductance: ≤ 90 mH.
Active Capacity: < 1.2 nF.
Key FeaturesVOGI
High-Temperature Resilience & Robust Construction: Epro PR9268/017-100 is engineered for demanding environments, with a stainless steel housing and IP65 protection against dust and water ingress. It operates reliably in temperatures up to +100°C, making it ideal for critical applications like gas turbines and steam-driven machinery .
Seismic Measurement Principle for Precision: Utilizing a spring-suspended seismic coil, Epro PR9268/017-100 generates a voltage signal proportional to vibration velocity (4–1000Hz frequency range). This design ensures accurate detection of axial displacement and rotor imbalances, even in high-vibration settings such as compressors or hydro turbines .
Omnidirectional Sensitivity & Flexible Integration: With 0.28kg lightweight design and optional armored or non-armored cables (3–10m lengths), the Epro PR9268/017-100 adapts to confined installations. Its 4–20mA output integrates seamlessly with industrial control systems for real-time monitoring .
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Pharmaceutical Tablet Coating Drums: Installed on coating pan drives, the Epro PR9268/017-100 detects uneven distribution vibrations caused by tablet clumping, ensuring uniform film coatings while resisting ethanol and acetone exposure during solvent-based processes.
Lithium Battery Electrode Calenders: Mounted on precision rolling mills, it identifies micro-vibrations during electrode foil compression, reducing thickness deviations by 90% to meet EV battery ISO 26262 safety standards.
Dairy Homogenizer Pumps: Integrated into high-pressure dairy processing lines, this sensor monitors cavitation risks in 200-bar homogenizers, preventing bacterial ingress via its EHEDG-certified smooth surface design. Epro PR9268/017-100’s CIP/SIP compatibility simplifies sterilization cycles.
Dairy Homogenizer Pumps: Integrated into high-pressure dairy processing lines, this sensor monitors cavitation risks in 200-bar homogenizers, preventing bacterial ingress via its EHEDG-certified smooth surface design. Epro PR9268/017-100’s CIP/SIP compatibility simplifies sterilization cycles.
