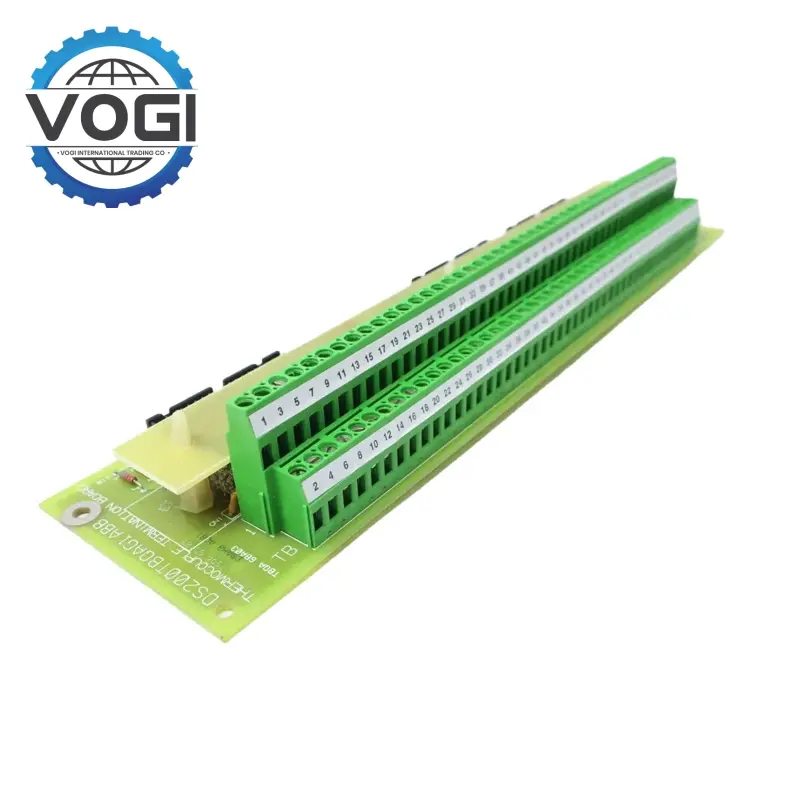

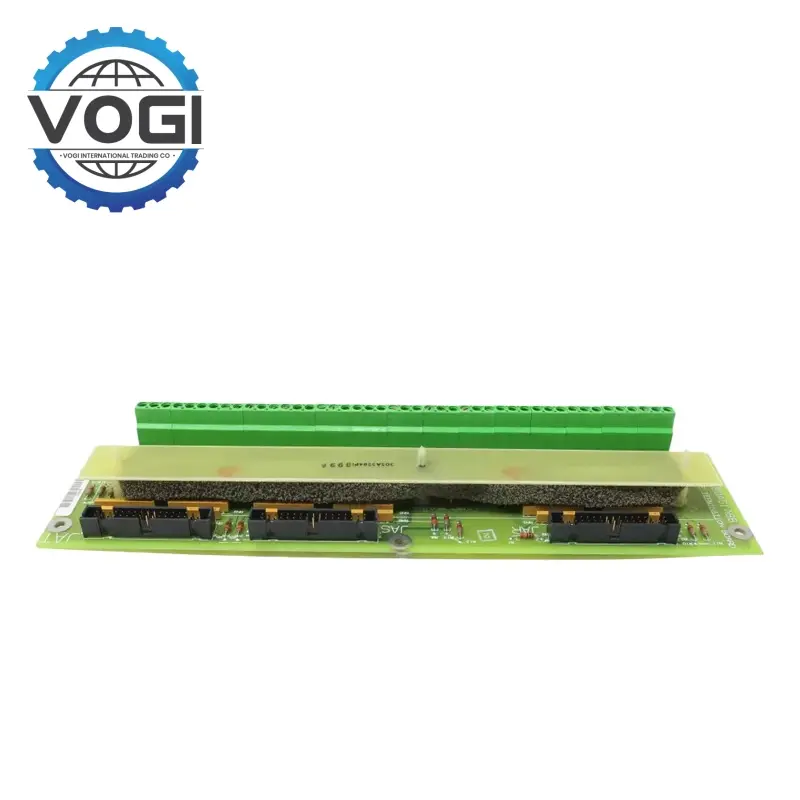

GE DS200TBQAG1ABB Analog Termination Board

Supply voltage: 24 V DC ±15%

Action current: ≤1.2 A

Release current: ≥0.6 A

Contact configuration: 2 groups of NO + 2 groups of NC (double-pole double-throw)

Load capacity: AC 250V/10A / DC 30V/15A

Protection level: IP67 (dustproof and waterproof)

Response time: action ≤8 ms / release ≤12 ms

Certification standards: IEC 61508 SIL2, EN ISO 13849-1 PLd, ATEX Zone 2

Mechanical life: ≥10⁷ times

Ambient temperature: -30°C ~ +70°C

Space saving Form Factor: Its compact and rugged design allows it to be integrated into tight control cabinets. At the same time, its solid construction with high-strength materials makes it effective in resisting shocks, vibrations, and corrosive products common in industrial environments.

Precision Signal Processing: Advanced circuitry for handling analog and digital signals. It can precisely amplify weak signals, reject noise and perform high-resolution conversions to ensure the integrity of processing data.

Usability:  Can flexible connectivity Since it can communicate with so many others, it can easily fit into the complex tangle that is an industrial network.

Power industry: GE DS200TBQAG1ABB  used for short circuit, overload and grounding protection of medium and high voltage distribution networks.

Industrial products: integrated in motor protection, inverter control, production line distribution monitoring, etc.

Construction field: GE DS200TBQAG1ABB  used for power quality monitoring, emergency power switching and energy-saving transformation of building automation.

New energy industry: meet the grid connection and harmonic suppression needs of photovoltaic inverters and energy storage systems.
