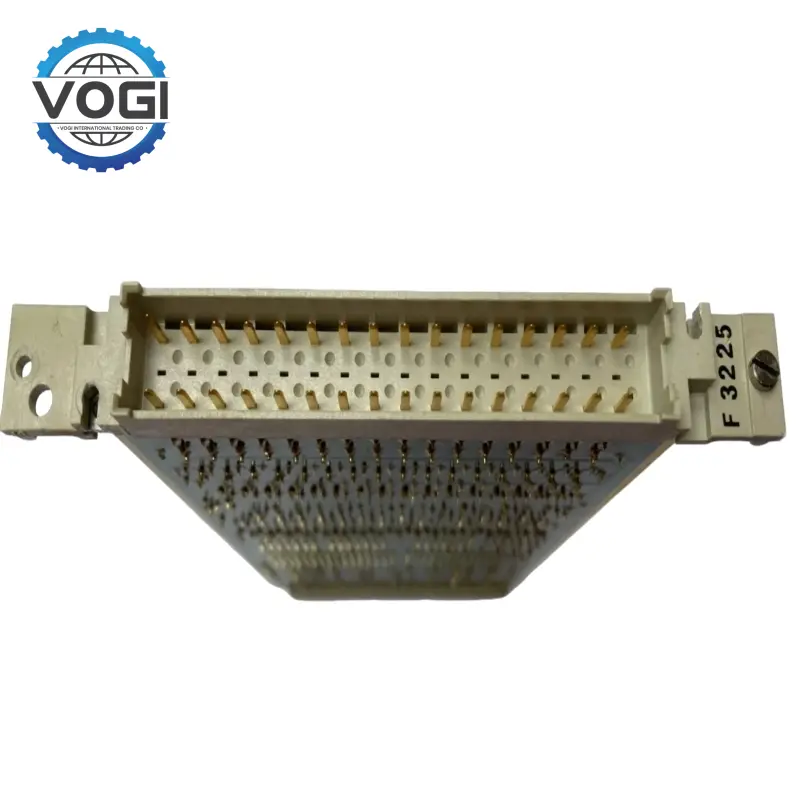

HIMA F3225 Input Module
Key SpecificationsVogi
Supply voltage: 24 V DC ±15%
Action current: ≤1.2 A
Release current: ≥0.6 A
Contact configuration: 2 groups of NO + 2 groups of NC (double-pole double-throw)
Load capacity: AC 250V/10A / DC 30V/15A
Protection level: IP67 (dustproof and waterproof)
Response time: action ≤8 ms / release ≤12 ms
Certification standards: IEC 61508 SIL2, EN ISO 13849-1 PLd, ATEX Zone 2
Mechanical life: ≥10⁷ times
Ambient temperature: -30°C ~ +70°C
key FeaturesVogi
Space saving Form Factor: Its compact and rugged design allows it to be integrated into tight control cabinets. At the same time, its solid construction with high-strength materials makes it effective in resisting shocks, vibrations, and corrosive products common in industrial environments.
Precision Signal Processing: Advanced circuitry for handling analog and digital signals. It can precisely amplify weak signals, reject noise and perform high-resolution conversions to ensure the integrity of processing data.
Usability: Can flexible connectivity Since it can communicate with so many others, it can easily fit into the complex tangle that is an industrial network.
Freight Estimation(Part Of The Area)Vogi
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
applicationVogi
High Power Full Control System: Capable of protecting DC loads up to 30 V and 15 A from short circuits and other electrical faults, operating current is approximately 1.2 A or less.
Precision Sensor Signal Path Switch Dipole Double Throw Contact: Enables redundant signal paths, ensuring response time ≤ 8 ms.
Electrical Isolation: With IP67 protection rating, temperature range between -30°C to +70°C, dustproof, waterproof, freeze-proof and thaw-proof.
