Honeywell
0102030405

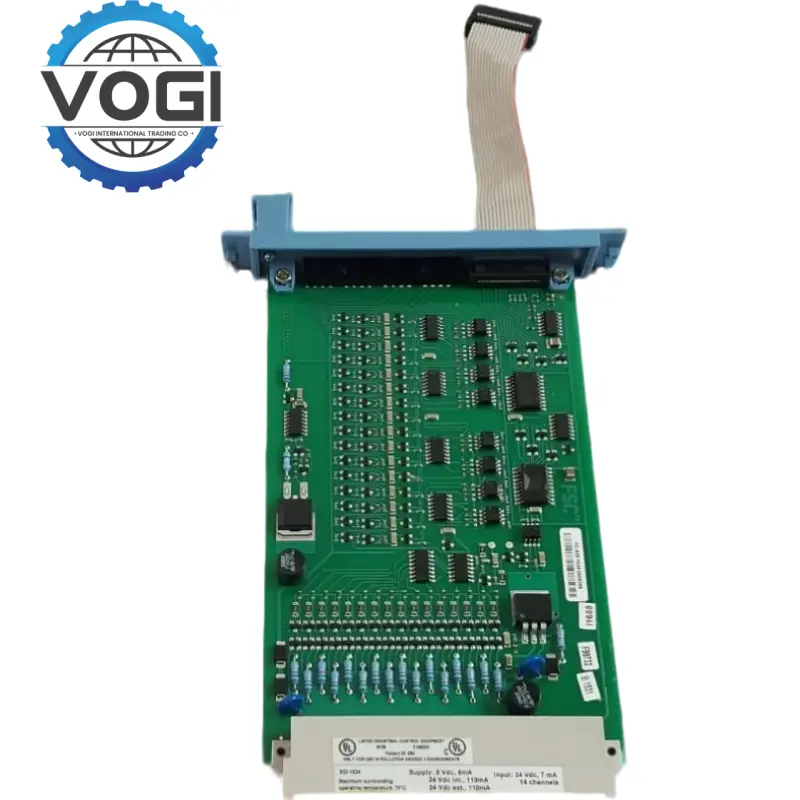

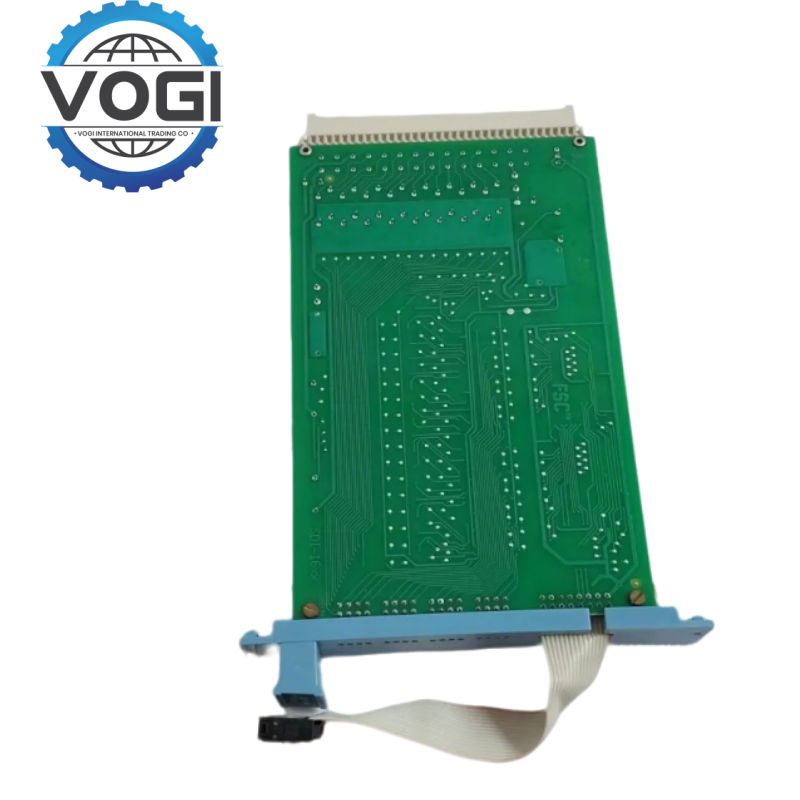

HONEYWELL FC-SDI-1624 Digital Input Module
Key SpecificationsVOGI
Input Voltage: 24 VDC
Current Consumption: 110 mA
Number of Channels: 16
Input Type: Digital
Input Signal Voltage Range: 20.4 VDC to 28.8 VDC
Input Signal Current: 5 mA per channel (max)
Isolation Voltage: 500 VAC (input to output)
Response Time: < 10 ms
LED Status Indicators: Yes (for each channel)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5% to 95% (non-condensing)
Mounting Type: DIN Rail
Key FeaturesVOGI
Channel and signal support: HONEYWELL FC-SDI-1624 is a 16-channel isolated digital input that supports 24V DC signals and is compatible with discrete signals such as dry contacts, limit switches, and proximity sensors. It also supports 2-wire and 3-wire sensor configurations and is suitable for a variety of industrial field equipment.
High precision and reliability: HONEYWELL FC-SDI-1624 has built-in diagnostic functions to monitor input status in real time for easy troubleshooting. HONEYWELL FC-SDI-1624 adopts an isolated design to enhance anti-interference capabilities and ensure stable signal transmission.
Wide environmental adaptability: The operating temperature range of HONEYWELL FC-SDI-1624 is -40°C to + 70°C, which is suitable for harsh industrial environments. It also has an IP65 protection level, is dustproof and waterproof, and is suitable for dusty or humid scenes.
Safety and certification: HONEYWELL FC-SDI-1624 complies with international standards such as UL, CE, IEC, and meets industrial safety specifications. Redundant design improves system reliability and is suitable for critical control scenarios.
Integration and maintenance: The compact design is easy to install in the control cabinet, and the LED indicator light intuitively displays the channel status, simplifying on-site commissioning and maintenance.
Application compatibility: It is compatible with industrial control systems such as Honeywell Experion PKS, supports protocols such as Modbus, and can be seamlessly integrated into DCS and PLC architectures.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Industrial Automation and Manufacturing: 16-channel isolated input, 24V DC compatible, built-in diagnostic function, support for 2/3-wire sensors, suitable for production line equipment status monitoring and robot signal acquisition.
Energy and Power Systems: Wide temperature range (-40℃ to +70℃), IP65 protection, anti-vibration design, suitable for power station equipment monitoring and new energy inverter signal processing.
Chemical and Petroleum Industry: Redundant design, safe state configuration (FailOpt), UL/CE/IEC certification, meet the needs of reactor/pipeline parameter monitoring and explosion-proof environment.
Rail Transit: IP65 protection, fast response (<1 ms), ensure the reliability of shield door control and turnout signal transmission.
Smart Building and Fire Protection: Modbus protocol compatible, safe state preset, support emergency lighting switching and HVAC damper control.
Special Environment: Wide temperature adaptability, dust and water proof design, built-in diagnostic function, suitable for mining machinery, laboratory instruments and engineering machinery signal monitoring.
