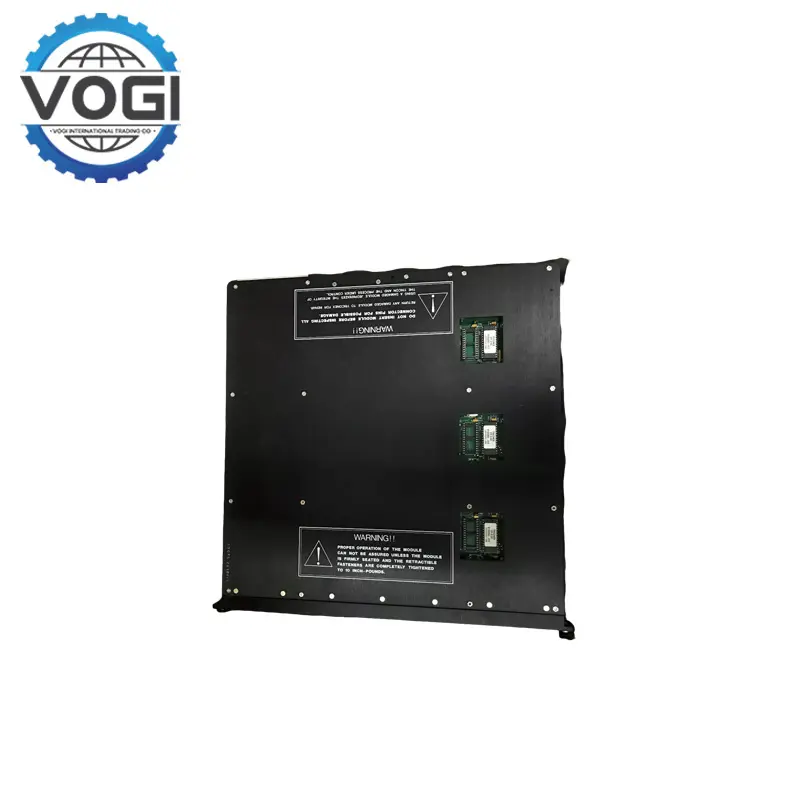

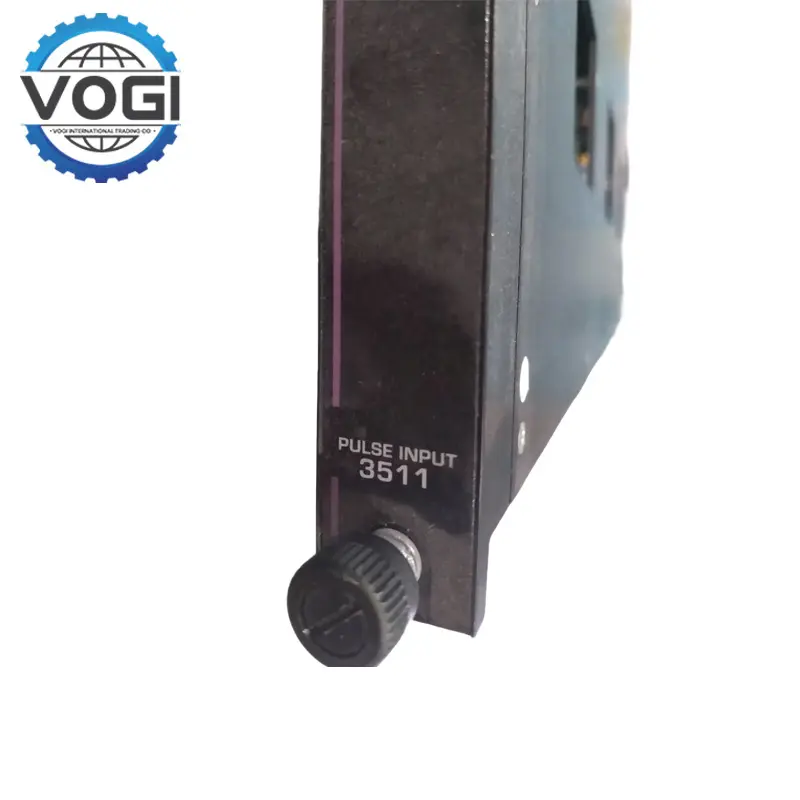

Triconex 3511 Pulse Input Module

Key SpecificationsVogi

Input Signals: 8, non-commonded
Input Coupling: AC coupled, balanced differential
Impedance (Load): >8 kΩ, 20 kΩ
Normal Mode Range: 1.5 V to 200 V peak-to-peak
Over Range Protection: ±150 VDC, continuous
Wave Shape: Sine, square, pulse, etc.
Duty Cycle: 10% to 90%
Frequency Range: 20 Hz to 20,000 Hz
Current Range: 0-20 mA (with 250-ohm shunt)
Operating Voltage: 24 VDC
Input Current: 10 mA per channel
Power Consumption: 2.5 W
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Humidity: 5% to 95% RH, non-condensing

Key FEATURESVogi

Triple Redundancy (TMR): Three independent processors run in parallel, voting on outputs to ensure fail-safe operation. Eliminates single-point failures in critical processes.
Advanced Diagnostics: Continuous self-testing of hardware/software to detect faults. Alerts operators via system status indicators or software tools.
Flexible I/O Integration: Triconex 3511 is compatible with a wide range of  Triconex I/O modules. Supports hot-swapping for maintenance without system downtime.
Robust Communication: Interfaces with DCS/SCADA systems via Modbus, OPC, or proprietary protocols. Enables remote monitoring and control through TriStation software.
Extreme Durability: Operates in harsh conditions (wide temperature, vibration, EMI resistance). Designed for 24/7 operation in industries like power generation, chemical plants, and offshore platforms.

Freight Estimation(Part Of The Area)Vogi

APPLICATIONSVogi

Emergency Shutdown (ESD): Initiates rapid shutdown in the event of leaks, over-pressure, or equipment failures.
Fire & Gas Detection : Monitors Hazardous Environments (e.g. offshore platforms, refineries) to trigger alarms / suppression systems.
Turbine Control: Triconex 3511 protects gas/steam turbines from over-speed or overheating.
Grid Protection: Handles critical tripping on voltage/frequency events.
Process Safety：Control of high-risk reactions, pressure vessels, and toxic gas handling.
