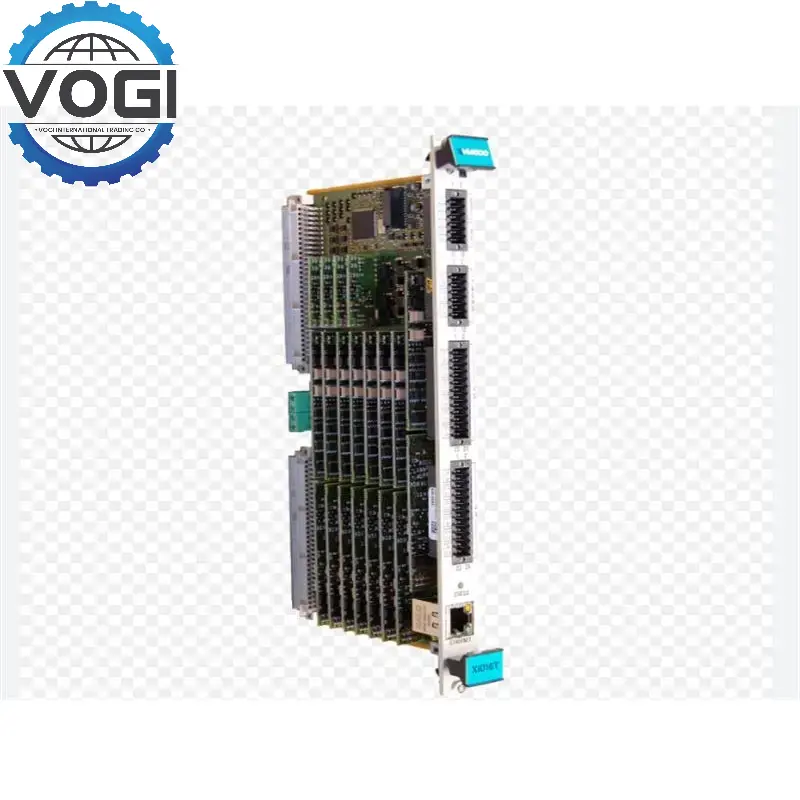

Vibro-Meter XIO16T 620-002-000-113 Extended input/output card

KEY FEATURES AND BENEFITS :

• VibroSight® compatible hardware from the vibro-meter® product line

• VM600Mk2/VM600 high-performance condition monitoring

• 16 dynamic channels and 4 tachometer channels (also configurable as DC inputs)

• Individually configurable inputs, channel filters, processing and outputs – with simultaneous data acquisition (fixed frequency or order tracked)

• 24-bit data acquisition and high SNR data processing, with data quality checks

• Up to 20 processed outputs per channel

• High-resolution spectra (FFT): up to 6400 lines every 500 ms, up to 3200 lines every 200 ms, up to 1600 lines every 100 ms

• Data aggregation of internal spectra (up to 100 ms) every 1 s

• Pre-trigger and post-trigger data logging at up to 100 ms

• Multiple alarms per processed output with configurable limits, hysteresis and time delay
