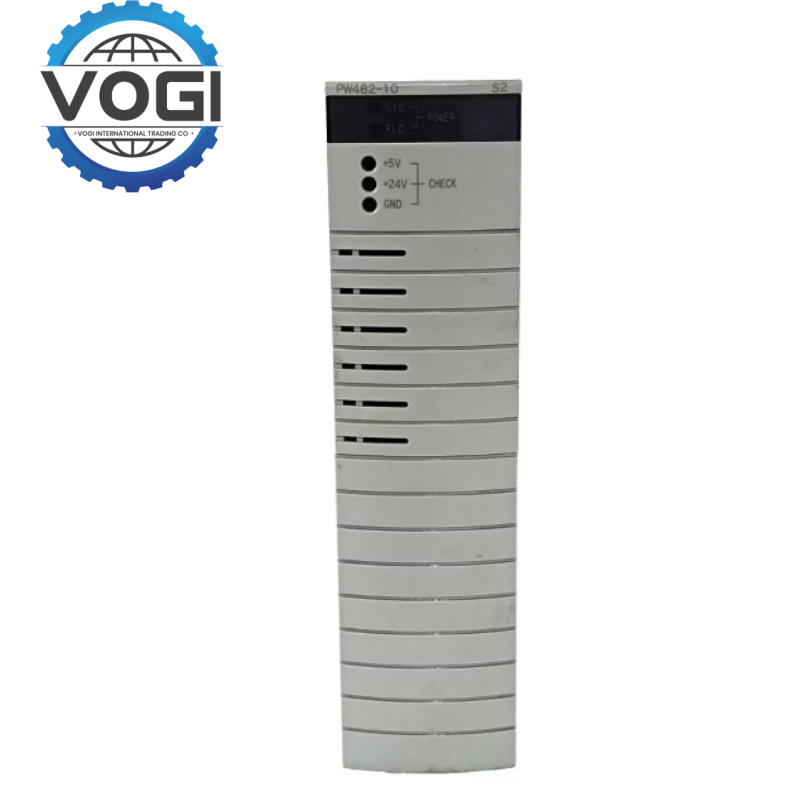

Yokogawa PW482 Power Supply Module
Key SpecificationsVOGI
Voltage input: DC 10 mV to 1000 V
Current input: DC 1 μA to 20 A
Frequency range: DC to 1 MHz
Voltage accuracy: ±0.05%
Current accuracy: ±0.05%
Power accuracy: ±0.1%
Screen: 4.3-inch color touch screen
Display resolution: up to 6 digits
Data storage: up to 2000 records
Voltage input impedance: > 10 MΩ
Current input impedance: 0.1 Ω
Operating temperature: 0℃ to 50℃
Relative humidity: 10% to 90%
Input voltage: AC 100-240 V
Power consumption: ≤ 30 W
Key FeaturesVOGI
High Precision Measurement: The voltage and current measurement accuracy of the YokogawaPW482, ±0.05%, the power accuracy ±0.1%, accurate measurement.
DC coupling and large frequency range: Yokogawa PW482 are also supporting a DC to 1 MHz frequency range, which can meet the different needs of measurement.
Feature rich: Yokogawa PW482 hold with 2000 data storage, ideal for long term monitoring and data analysis.
Intuitive display and easy operation: 4.3-inch color touch screen, with 6 bit resolution
Input Selection Flexibility: PW482 voltage (10 mV1000 V) and current (1 μA20 A) input range can meet different measurement needs.
High input impedance: The voltage input impedance of the Yokogawa PW482 is taken on float basis > 10 MΩ, thus not effecting the measurement accuracy.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
Power Monitoring and Energy Management: The PW482 provides high-precision measurements (voltage ±0.05%, power ±0.1%), suitable for power quality monitoring and analysis of power systems and power grids, and supports a wide frequency range from DC to 1 MHz to meet the testing needs of various power equipment.
Industrial Automation and Equipment Maintenance: With a wide input range (voltage 10 mV to 1000 V, current 1 μA to 20 A), it is suitable for power monitoring and fault diagnosis of factory equipment. Its maximum 2000 data storage function supports long-term monitoring and analysis.
R&D Testing: High accuracy, wide frequency range (DC to 1 MHz), plus a 4.3-inch color touch screen and simple operation interface, it is suitable for performance testing and R&D verification of electrical equipment.
Renewable Energy: High-precision power measurement capabilities support performance monitoring and optimization of solar, wind and other systems to ensure energy conversion efficiency.
Home Appliances and Consumer Electronics: Accurate power, voltage and current measurements are suitable for R&D, testing and quality control of home appliance products.
